"Minispare" emergency spare wheel

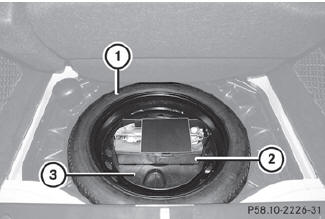

The "Minispare" emergency spare wheel can be found in the stowage well under the trunk floor.

Lift the trunk floor up.

Turn stowage tray 3 counter-clockwise

and remove together with vehicle tool kit Turn stowage tray 3 counter-clockwise and remove together with vehicle tool kit tray 2.

wheel 1. Remove "Minispare" emergency spare wheel 1.

For further information on changing a wheel and mounting the spare wheel.
