Vehicle identification number (VIN)
The vehicle identification number (VIN) can
be found in the following locations:
- on the vehicle identification plate
- at the lower edge of the windshield

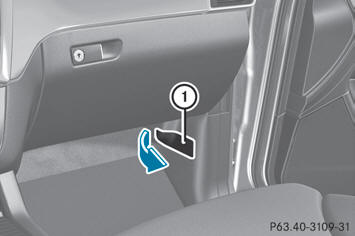

In addition to being stamped on the vehicle identification plate, the vehicle identification number (VIN) is also stamped onto the vehicle body. It is located in the lower part of the right-hand A-pillar.

– Open the front right-hand door.
– Open cover 1 in the direction of the arrow
and remove it.
You will see the vehicle identification
number (VIN).
See also:
Tire size designation, load-bearingcapacity and speed index
1 Tire width
2 Nominal aspect ratio in %
3 Tire code
4 Rim diameter
5 Load bearing index
6 Tire speed rating
Tire data is vehicle-specific and may
deviate from the data in the example.
Ge ...
Important safety notes
WARNING
The RSE CD/DVD player is a Class 1 laser
product. There is a danger of invisible laser
radiation when you open or damage the cover.
Do not remove the cover. The RSE CD/DVD
player d ...
Position of the steering wheel and the driver's seat when the
EASY-ENTRY/EXIT feature is active
The steering wheel tilts upwards and the
driver's seat moves backwards if you:
• remove the SmartKey from the ignition lock
• open the driver's door when the SmartKey
is in the ignition lock ...
