Low-beam headlamps (halogenheadlamps)
► Switch off the lights.
► Open the hood.

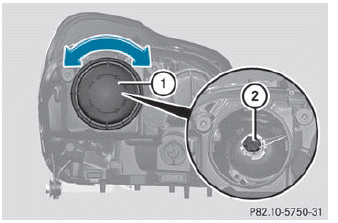

► Turn housing cover 1 counter-clockwise
and pull it out.
► Turn bulb holder 2 counter-clockwise and
pull it out.
► Take the bulb out of bulb holder 2.
► Insert the new bulb into bulb holder 2.
► Insert bulb holder 2 into the lamp and
turn
it clockwise.
► Align housing cover 1 and turn it
clockwise until it engages.
