Example of operation
Initial situation

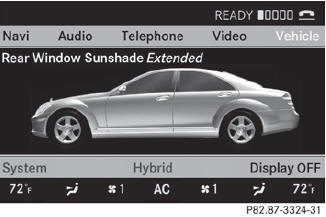

You would like to switch from the vehicle
function to the radio function and select a
station from the station list, for example.
The following operating example describes
how to:
• call up the audio function
• switch on radio mode
• set a station.
Calling up the audio function
Select Audio in the main function bar by
sliding and turning
the COMAND
controller and press to confirm.
The basic display of the current audio
operating mode, e.g. audio CD, appears.
Switching to radio mode
Option 1
Press the function button. The radio display appears.
Repeated pressing of this function button switches between radio and the most recently active audio source.
Option 2
Select Audio again by sliding
the
COMAND controller and press to
confirm.
The Audio menu appears.
1 Current audio operating mode
2 Main function bar
3 Audio menu
Press the COMAND controller
and
confirm Radio.
The radio basic display appears with the
waveband last selected.
To set the station: if the display/selection window is activated in the radio display, turn or slide COMAND controller.
